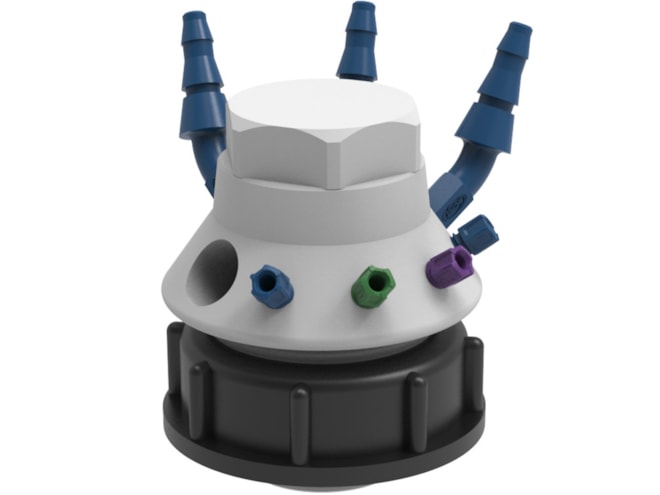

SCAT Lab Safety S55 LISA Safety Waste Cap
PTFE cap with S55 thread, tube connectors, 1.6, 2.3, 3.2mm PFA fittings, PFA and PTFE blind plugs.
- 350055
Overview
Features
- PTFE cap material
- S55 thread
- 3 tube connection ports
- 4 capillary connection ports
- Each cap comes with the following accessories:
- (3) 5.0 - 11.5mm OD PP tube connectors
- (4) 1.6mm PFA fittings
- (4) 2.3mm PFA fittings
- (4) 3.2mm PFA fittings
- (4) 1/4in UNF, PFA blind plugs for HPLC connections
- (1) GL14, PTFE blind plug for exhaust filter connection
- (3) 1/8in NPT, PTFE blind plugs for tubing connections
Description
The SCAT Lab Safety S55 LISA Safety Waste Cap is a modular system for HPLC waste designed for applications with evolving needs. With its 23 included accessories, the LISA safety cap provides a systematic docking station that can adapt to the changing needs of the application by simply changing connections and individual components as required. Each cap has 3 tube connection ports, 4 capillary connection ports, an exhaust filter port, and appropriate fittings for each connection type.
The LISA safety waste cap set consists of a PPS screw cap, PTFE satellite, tube connectors, PFA fittings, and blind plugs to adapt to the different needs of an application. The autoclavable PPS screw cap connects to and provides improved handling of the HPLC container. Fittings and tubing are then attached to the screw cap by the LISA satellite. The LISA PTFE satellite features tubing and exhaust connections, optimal chemical resistance, and a 360° rotating core that allows container changes without disrupting the connected tubing.
