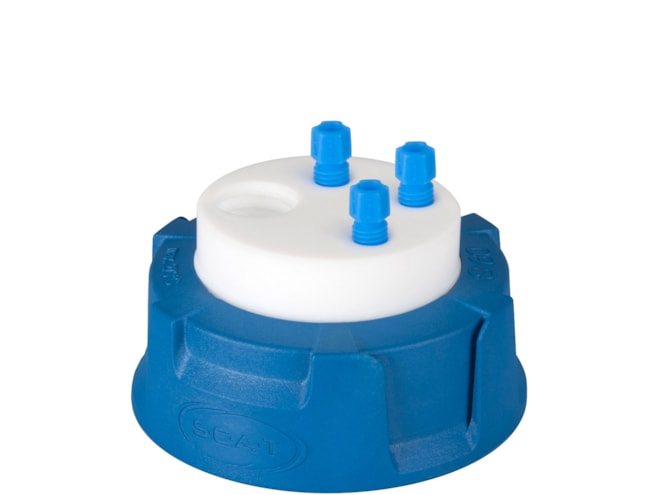

SCAT Lab Safety S60/61 Safety Waste Cap V2.0

2 - 4 capillary connection ports, exhaust filter port, PFA fittings, blind plugs. Optional tubing and grounding connections available.

Starting at $185.61
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • PTFE main cap material
  • S60/61 threaded cap

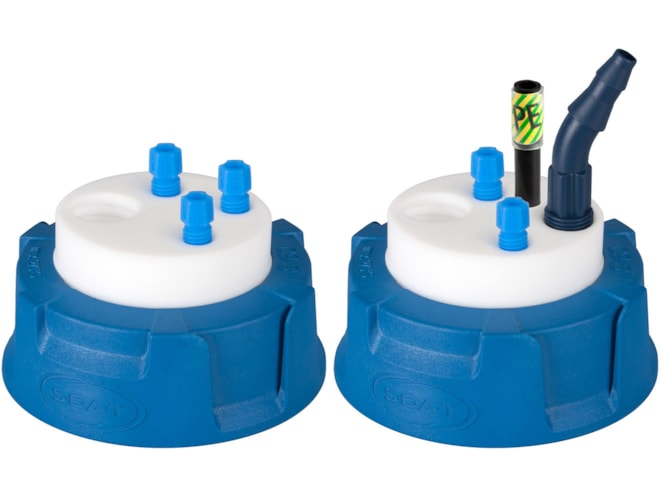

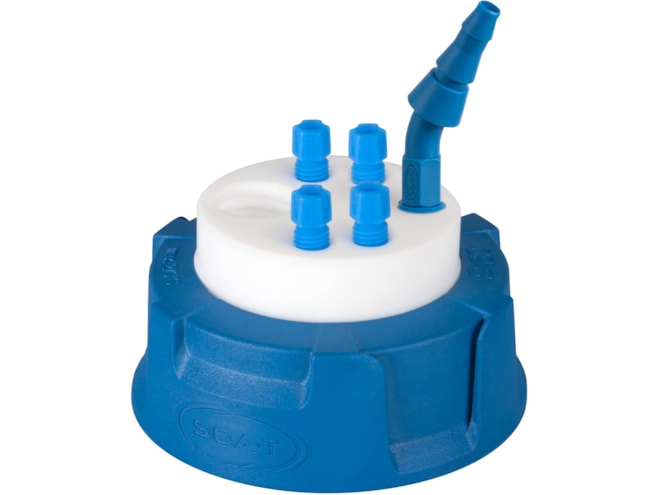

  • 2, 3, or 4 capillary connection ports
    • 2.3 and 3.2mm PFA fittings included for each port
    • Blind plugs included to close unused ports
  • GL14 connection for exhaust filter

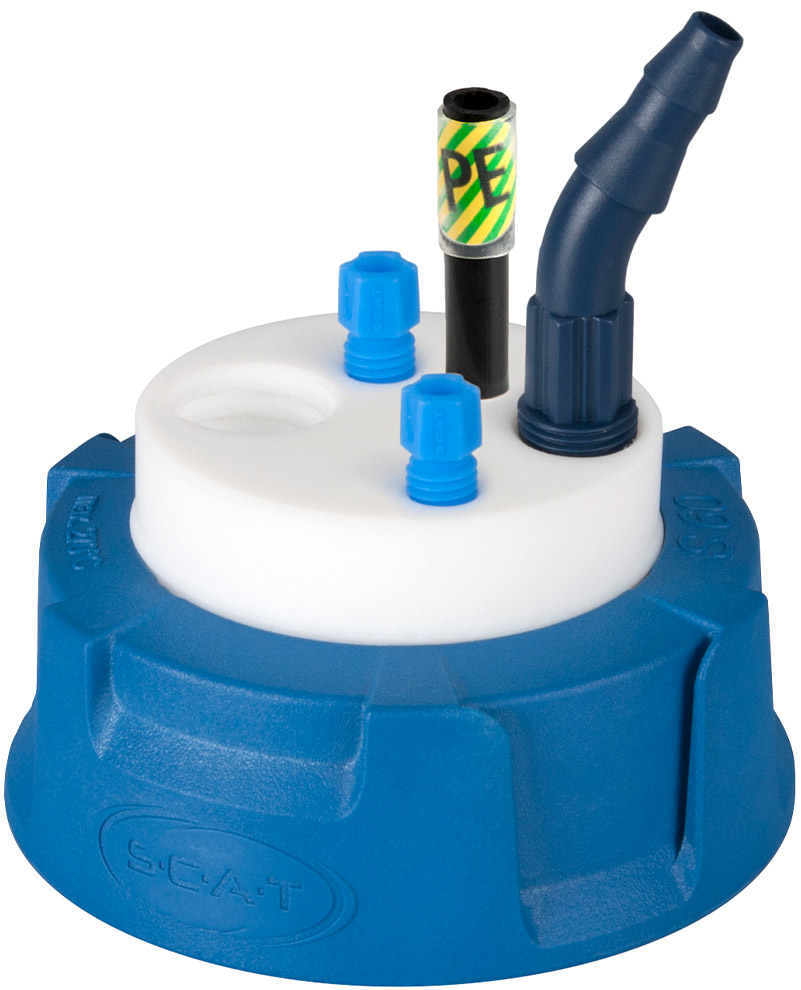

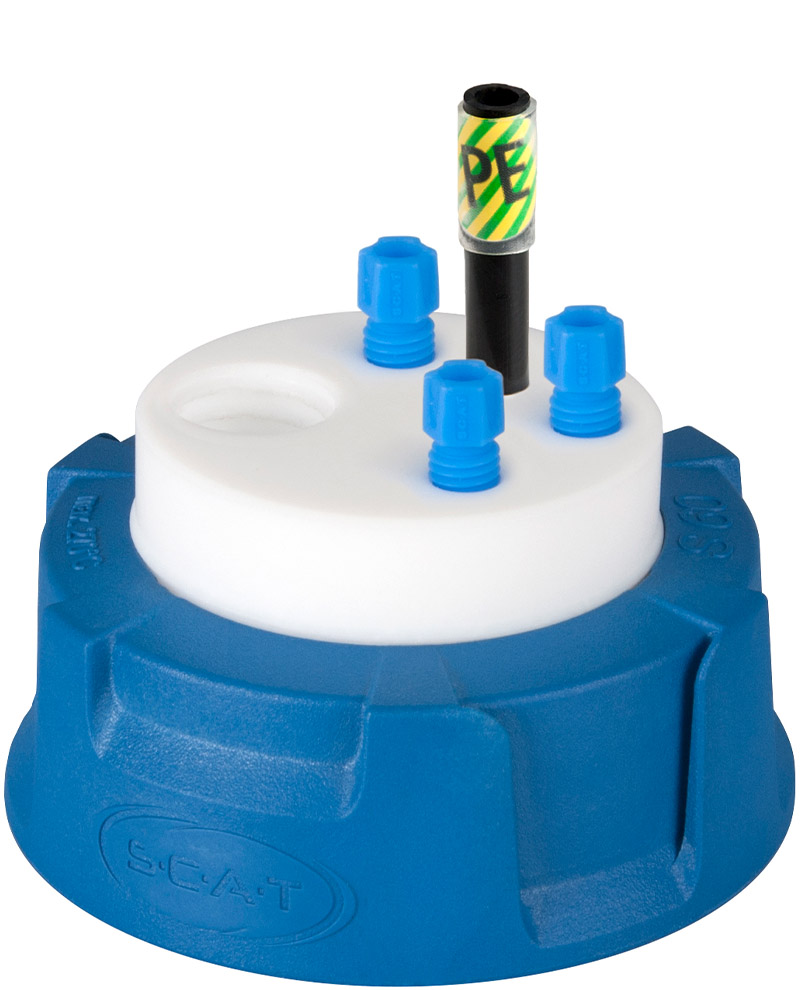

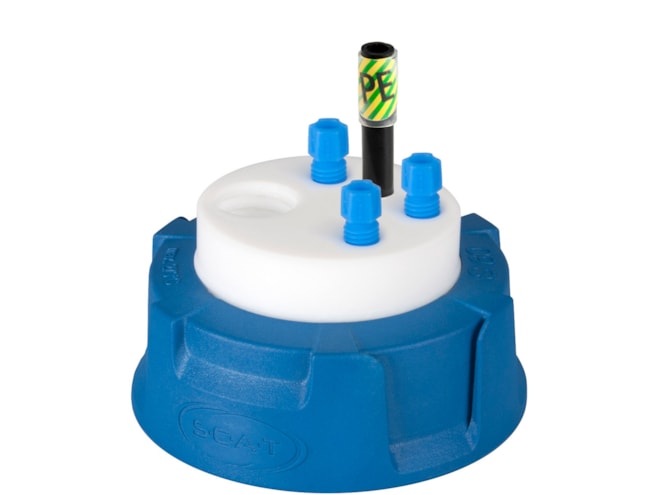

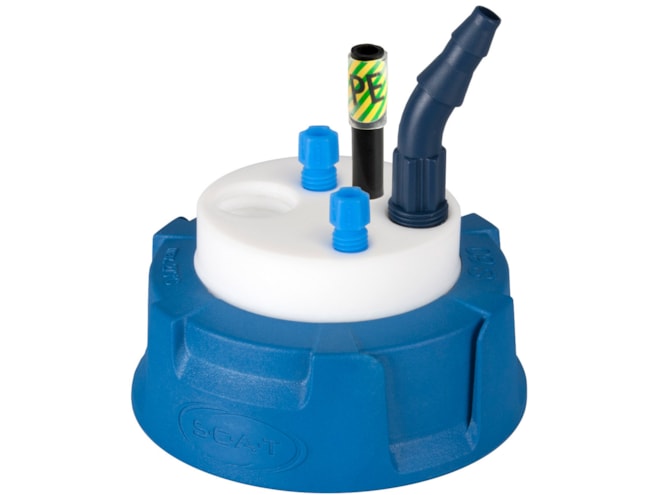

  • Optional grounding connection

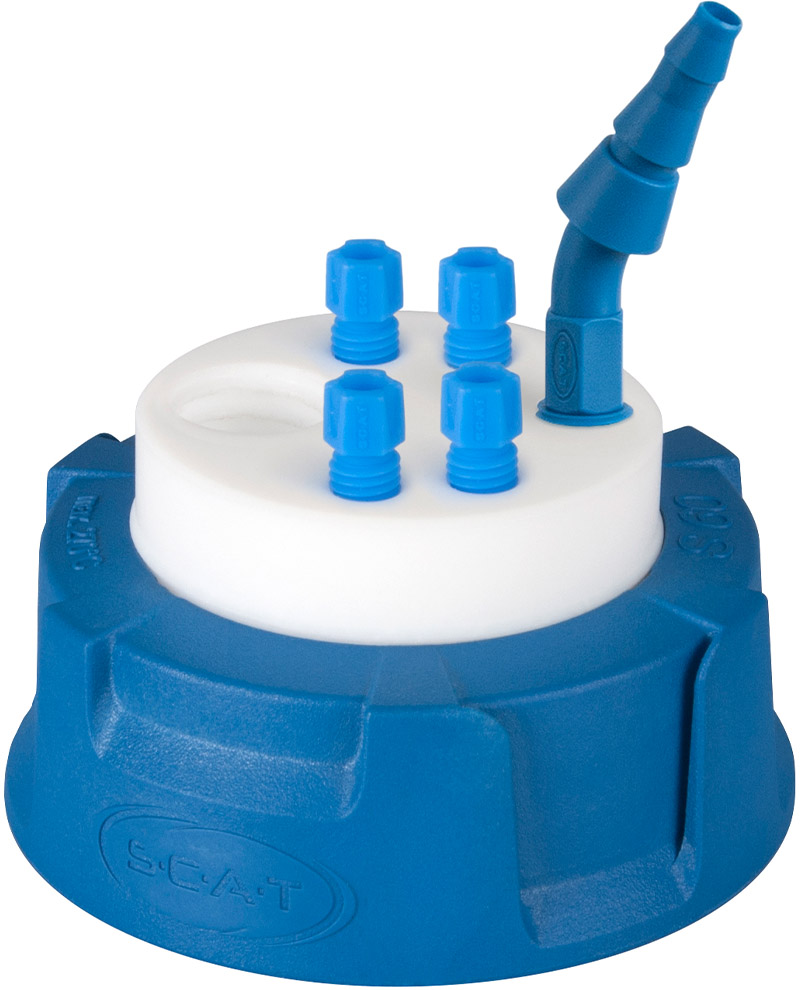

  • Models with 2 or 4 capillary connection options include:

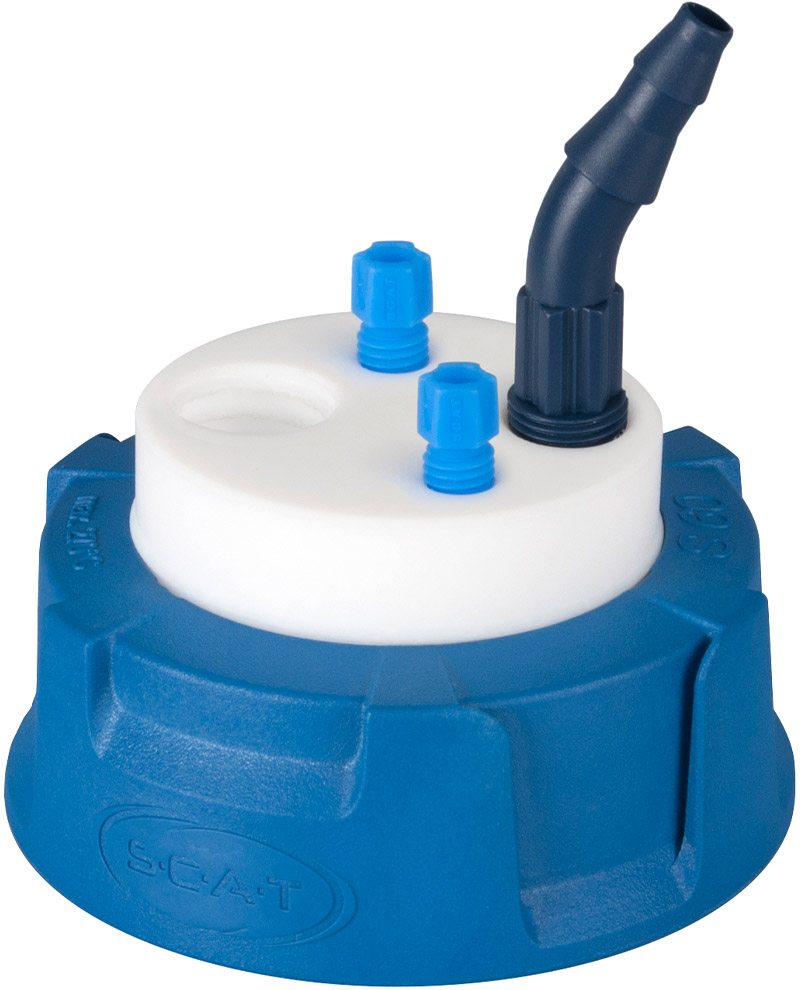

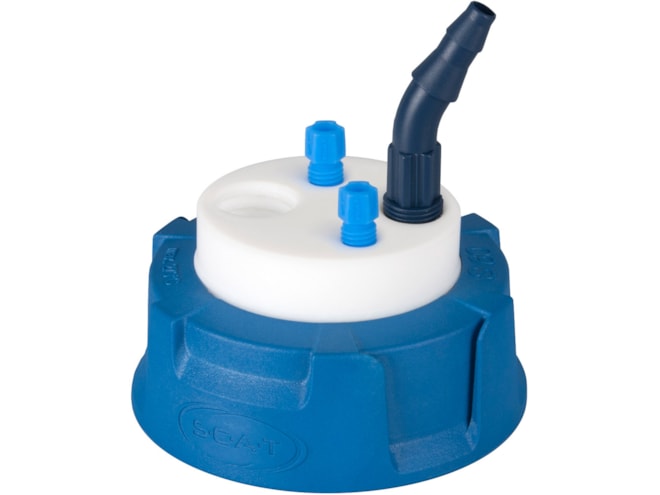

    • Tubing port for 5.0 - 11.5mm ID tubing
    • PP connector for 5.0 - 11.5mm ID tubing
  • PTFE components have excellent chemical resistance, are FDA compliant, and meet flammability classification V-0 (UL-94)

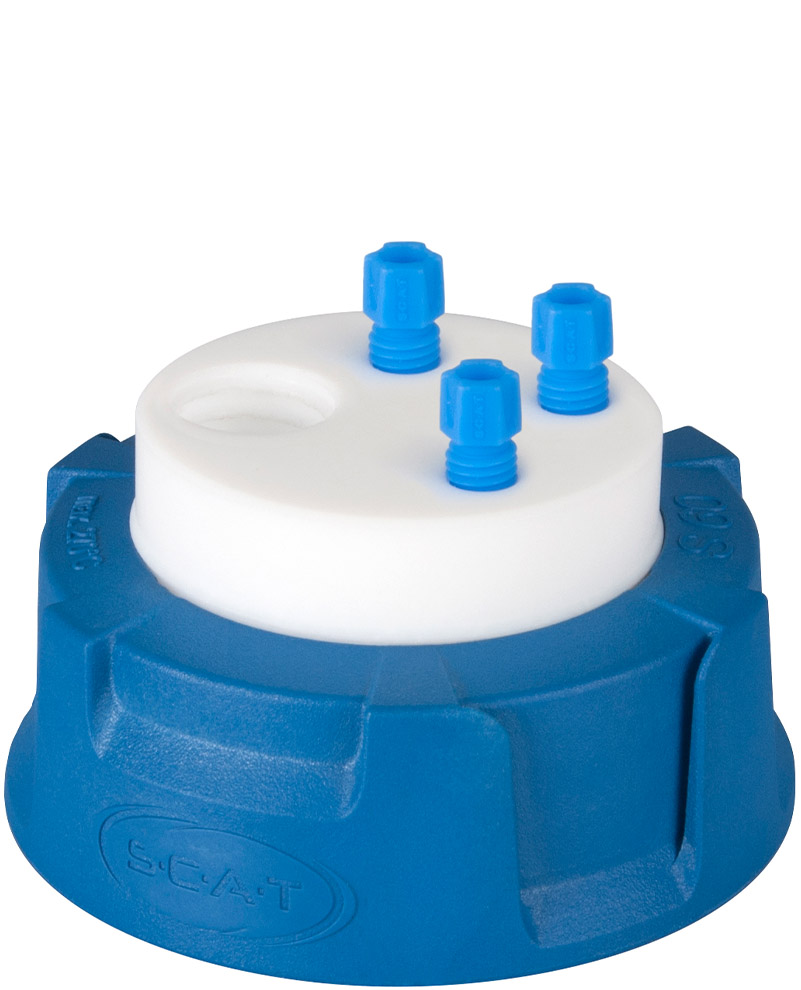

SCAT Lab Safety S60/61 Safety Waste Cap V2.0 is a hermetically sealing cap designed to work with SCAT exhaust filters to provide safe disposal of vapor, solvent, and HPLC waste. This safety waste cap is designed to fit S60/61 threaded containers and features 2, 3, or 4 capillary connections and a connection port for a SCAT exhaust filter (available separately). Each cap includes 2.3 and 3.2mm PFA fittings for each capillary connection and blind plugs to close off unused ports. Models with 2 and 4 capillary ports include a tubing port and polypropylene fitting for 6.4 - 9mm ID tubing. An optional grounding port is also available with select models.

SCAT Lab safety waste caps are manufactured with chemically resistant PTFE materials molded to create and maintain secure connections. The interior of the cap body contains an additional PTFE layer that protects the inner seal from corrosive solvents. Tubing connections are molded into the white PTFE core that can rotate 360° to allow easy container changes without disrupting capillaries and tubing.
