SCAT Lab Safety Jan Universal Waste Hub

Solvent waste cap with 1.6 - 3.2 mm OD HPLC connections, 5 - 11.5 mm ID tube connections, and funnel.

Starting at $562.23
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • 4 HPLC capillary connections
  • 3 tube connections
  • GL14 exhaust filter port
  • Hinged funnel lid
  • Cap thread size options:
    • B53, B63, B83, GL45, S50, S51, S55, S60/61, S65, S70/71, S90, S95
  • Blind plugs for unused connection ports

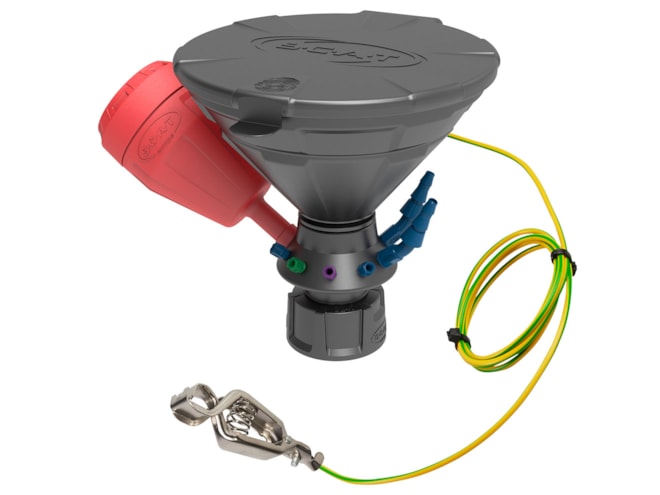

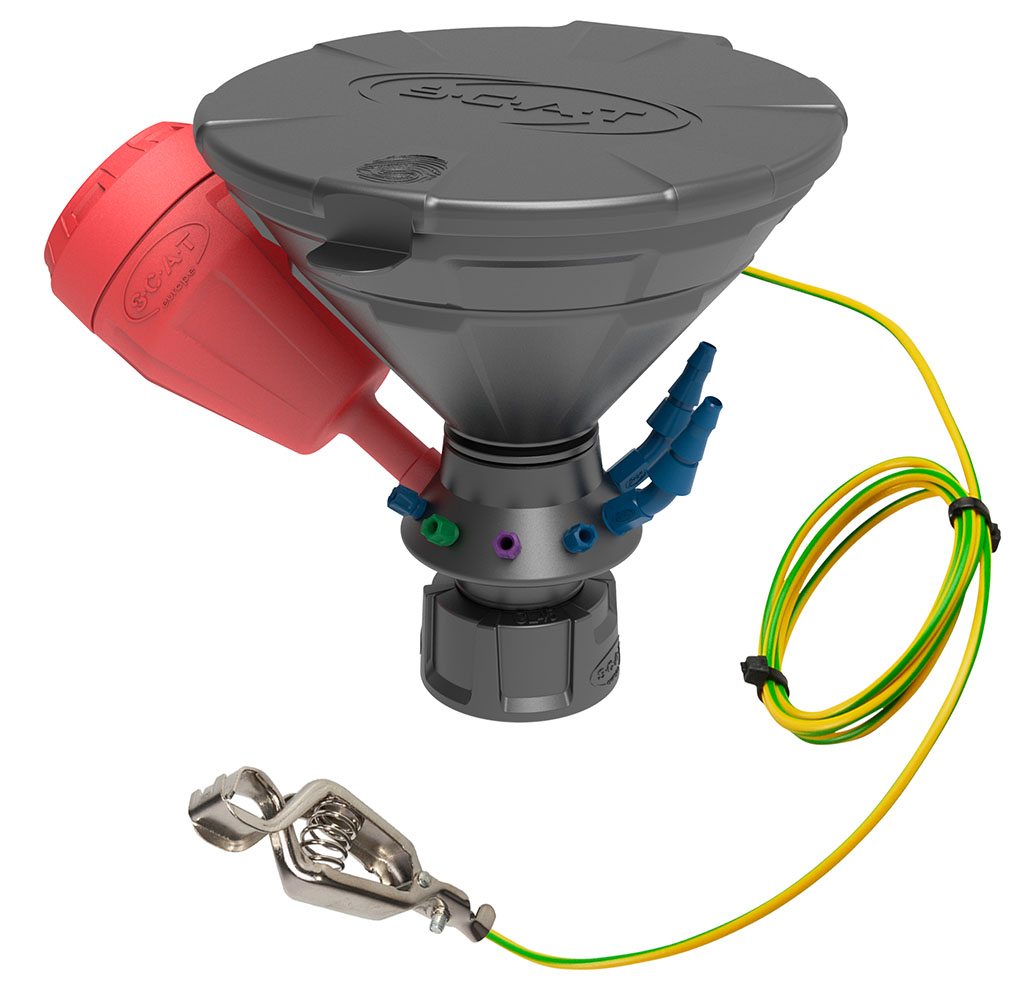

  • Electrostatic conductive material with earthing cable is available with GL45 and S60/61 threaded models

What's in the Box

  • 1 Safety cap
  • 1 Safety funnel
  • 1 Exhaust filter M with splash guard and change indicator
  • 3 PP tube connectors 5 - 11.5 mm OD
  • 4 PFA fitting 1.6 mm OD
  • 4 PFA fitting 3.2 mm OD
  • 4 PFA fitting 3.2 mm OD
  • 4 PFA blind plugs for HPLC connections, 1/4in UNF
  • 3 PTFE blind plugs for tubing connections, 1/8in NPT
  • 1 PTFE blind plug for exhaust filter connection, GL14

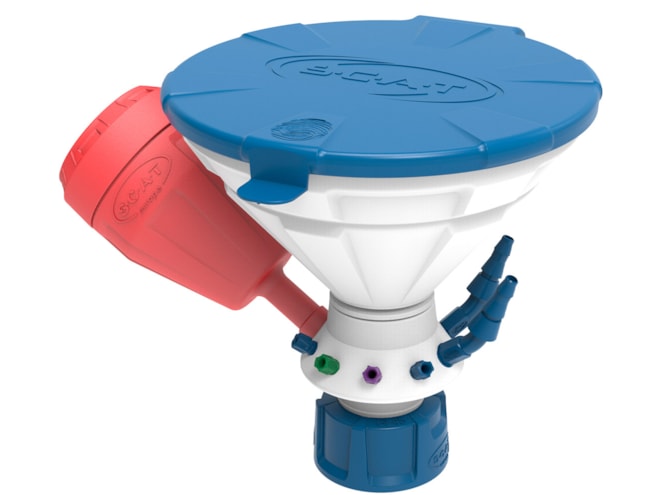

SCAT Lab Safety Jan Universal Waste Hub combines SCAT safety funnels, caps, and filters to safely collect solvent and other waste liquids without causing a smell. The caps of the Jan universal waste hub are available in various thread sizes to fit different container types found within labs and HPLC systems.
