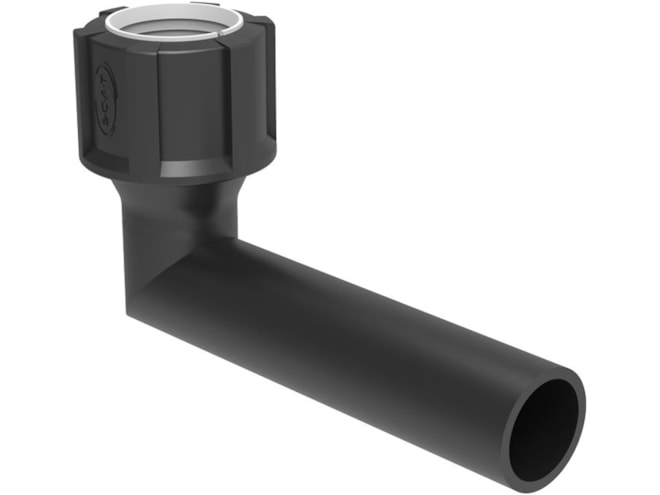

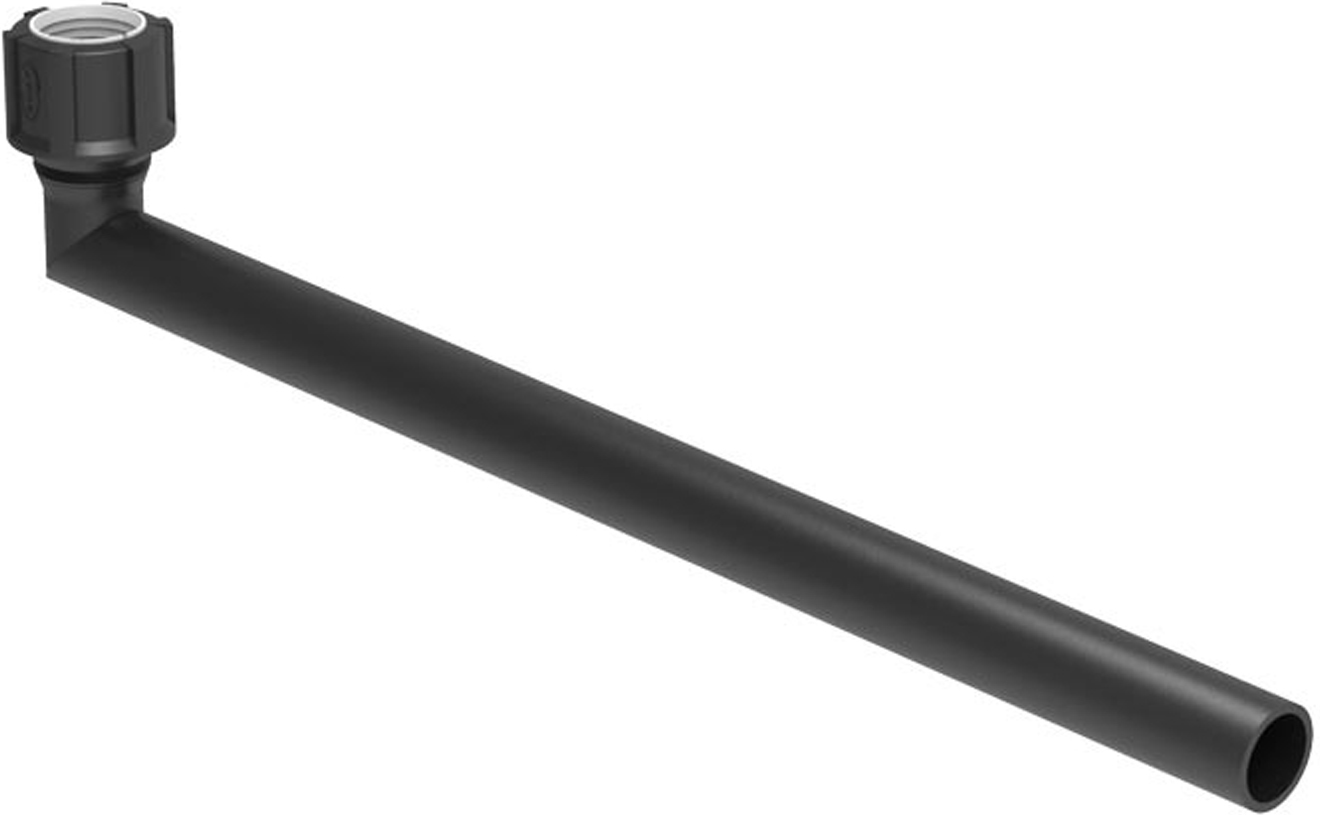

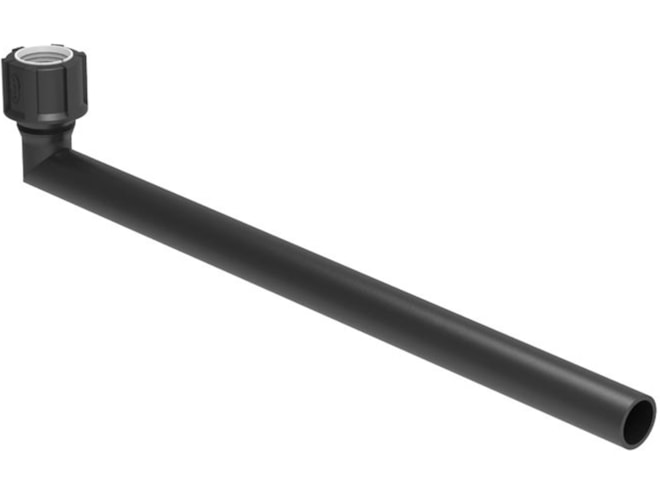

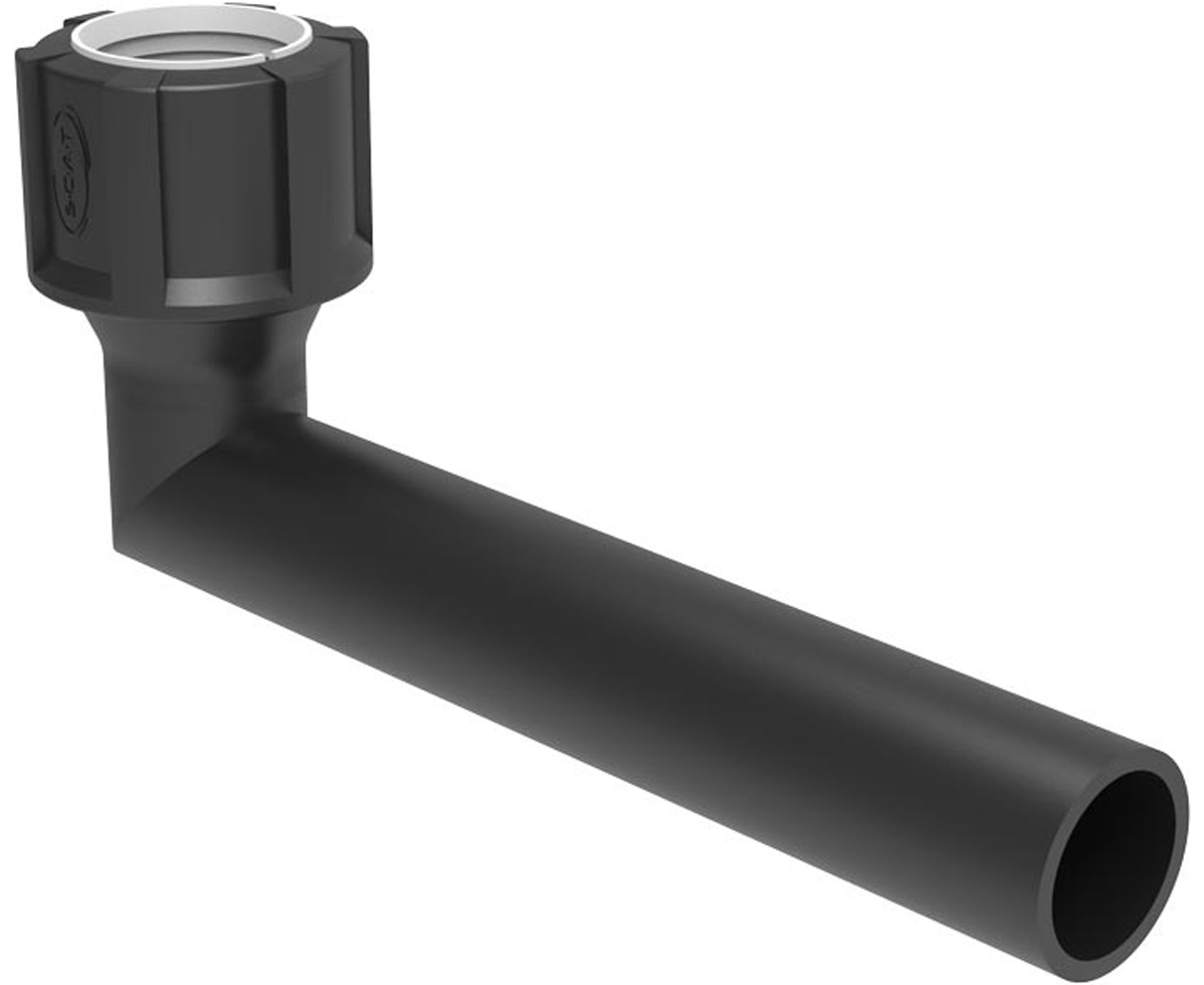

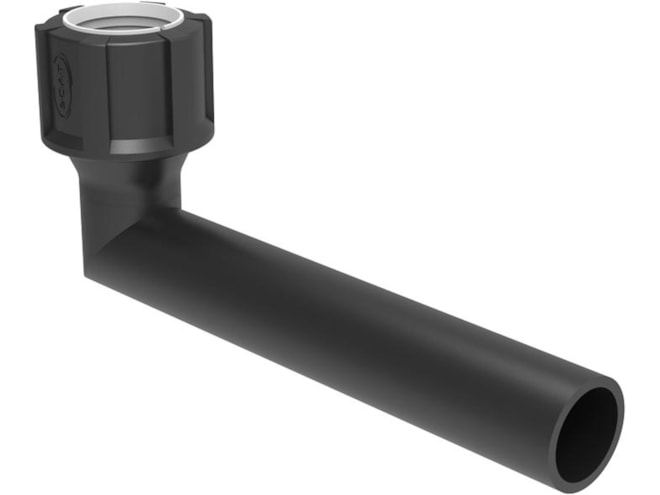

SCAT Lab Safety Angled Connector Pipe

Angled connectors with PE-HD-EL material, 32mm connections, and 150 - 500mm lengths.

Starting at $142.46
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • PE-HD electrostatic conductive material
  • 32mm ID and 32mm OD connections
  • 150, 200, or 500mm length
  • Tensile strength (Rm): 400N
  • Tightening torque: 10 - 15Nm
  • Includes a sealing ring PTFE-EL and knurled nut
  • Resistant to chemical substances according to SEFA 3 & 8
  • Suitable for zones 0, 1, and 2 according to the Ordinance on Hazardous Substances

The SCAT Lab Safety Angled Connector Pipe is part of the SymLine modular disposal system. This system provides a solution to connect several laboratory workstations, HPLC units, and fume cupboards to a central disposal or collection point.
