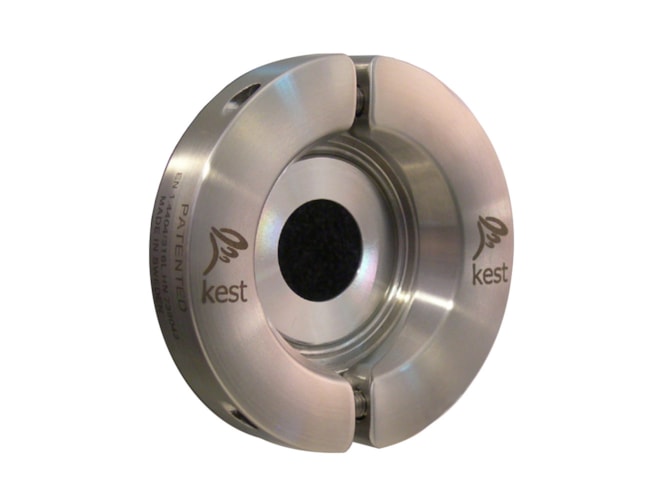

Kest Technology Kest-Lock Basic Ring

TC device connection with no loose parts and minimal space required, for use with static connections.

Starting at $120.00
Manufactured
Includes
Availability
  • Usually ships in 16-20 weeks
Product Specs

Features

  • 112 to 392F design temperature
  • -14.5 to 145psi design pressure
  • EN 1.4404 material grade
  • EN 10 272/10028-7 material requirement
  • Ra≤ [1.6 μm] [63 μin] grinded surface finish
  • Heat Certificate 3.1 acc. to EN 10 204

A unique user friendly connection that allows you to connect a TC device in a very smart way. No loose parts and minimal overhead space required, perfect for static connections. The Kest-Lock is designed for use of standard gaskets acc. to ISO 2852 type B and clamp couplings acc ISO 2852, ASME BPE, DIN 32 676.
