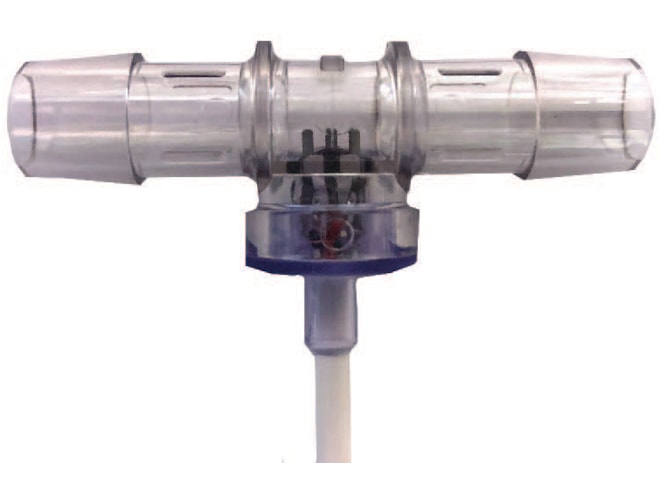

PendoTECH Single Use Conductivity Sensor

Highly accurate conductivity and temperature measurements without the need for sensor calibration.

PendoTECH Single Use Conductivity Sensor

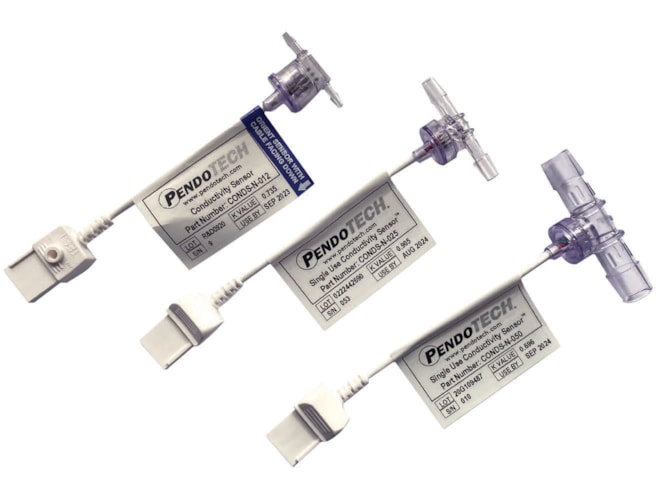

PendoTECH Single Use Conductivity Sensor Options

Starting at $224.28

Manufactured

By PendoTECH

Includes

FREE Shipping

Availability

Some models in stock. View available part numbers.

Product Specs

Features

Accuracy:
- 0.1 to 2mS/cm +/- 0.1mS/cm
- 2 to 50mS/cm +/- 5% of reading
- 50 to 100mS/cm typically +/- 5% of reading
0.1 to 100mS/cm conductivity range
75psi max pressure range
2 to 50°C temperature range
Thermistor temperature element with resistance @ 25°C of 2252ohm
Non-sterile, polysulfone
Custom-molded, watertight, 4-pin connector
IP67 when connected to reusable cable and dust cover
Fluid path materials:
- Gamma and x-ray irradiation compatible, up to 50 kiloGrays
- NaOH resistant
- USP Class VI
FDA Registered, ISO 13485 certified facility, Class 5 manufacturing environment

The PendoTECH single use conductivity sensor has a pre-determined cell constant and optional one-point calibration by the user, eliminating the need for sensor calibration. The sensor is low cost and designed for single use applications. It may be repeatedly cleaned and re-used.

Spec Sheets

PendoTECH Single Use Conductivity Sensor Datasheet (2.6 MB)

Links

All possible part numbers

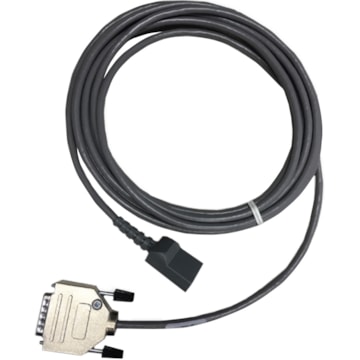

PendoTECH CMONT-650-298 Cable

3m cable adaptor with D15 male connector for single use conductivity sensors.

$376.73

PendoTECH CN-650-298 Sensor Cable

3m cable assembly for single use conductivity sensors.

$88.23

Part Number	Price	Available
CONDS-N-025 Show Configuration	$154.13	13 in stock
CONDS-N-012 Show Configuration	$224.28	5 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 24-28 weeks". Click here to select options
