Kest Technology Kest-Lock Pipe Inline

Kest-lock connection for inline applications.

Starting at $970.00
Manufactured
Includes
Availability
  • Usually ships in 16-20 weeks
Product Specs

Features

  • 112 to 392F temperature range
  • -14.5 to 145psi pressure range
  • EN 1.4435 material grade
  • EN 10 272/10028-7 material requirement
  • Ra≤[0.5 μm] [20 μin] internal (polished) surface finish
  • Ra≤[1.6 μm] [63 μin] outer surface finish
  • Heat Certificate 3.1 acc. to EN 10 204

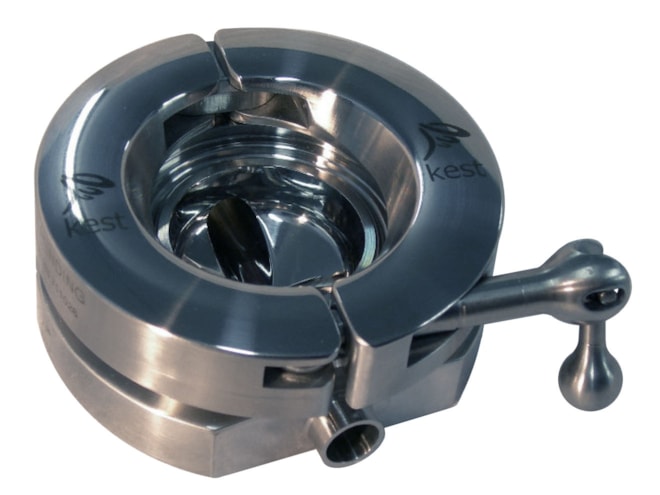

Kest Technology Kest-Lock Pipe Inline is designed for inline applications. When you want to have a Kest-Lock connection on a pipe you weld on the pipe inline flange and attach the Kest-Lock Connection on it.

The Kest-Lock is designed for use of standard gaskets acc. to ISO 2852 type B and clamp couplings acc ISO 2852,ASME BPE, DIN 32 676.
