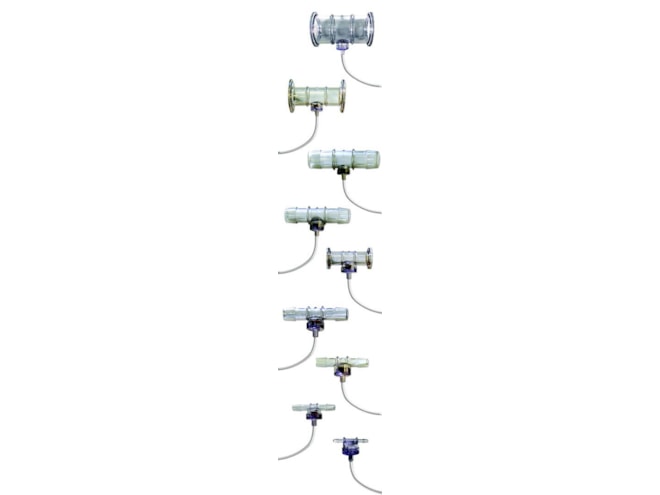

PendoTECH Single Use Sterile Pressure Sensor

Polycarbonate, sterile, with luer, for measurement of gases and liquids in biopharmaceutical processes.

Starting at $51.30
Manufactured
Includes
Availability
Product Specs

Features

  • Unobstructed flow path and no dead legs provide dramatically reduced hold-up volume
  • 100% tested for accuracy and leaks during manufacturing
  • USP Class VI both pre- and post-gamma irradiation
  • Certificate of Quality included with lot certification
  • NIST Certificates available
  • FDA Registered, ISO 13485 certified facility
  • ISO Class 7 clean room
  • Compatible with gamma irradiation and X-ray irradiation
  • May be non-invasively tested in-place via test port

The PendoTECH single use sterile pressure sensor measures static and dynamic pressure of gases and liquids in processes. The sensor is designed for filtration and chromatography processes, monitoring of glass and disposable bioreactors, filling operations, and more. The sensor is robust enough to be repeatedly cleaned, and inexpensive enough to be used in disposable applications, making it an excellent low-cost alternative to stainless steel pressure transducers for use with tubing.

The PendoTECH sensor features the PendoTECH High Accuracy Pressure (MEMS-HAP) chip, and it connects to a monitor via an integral connector. Suitable monitors include the PendoTECH PressureMAT monitor/transmitter, the PendoTECH Process Control System, or other pre-qualified third party monitors. The sensors can be non-invasively tested in place with the PendoTECH PressureCHECKER.

PendoTECH Single Use Pressure Sensor Cable Adapter
PendoTECH Single Use Pressure Sensor Cable Adapter

12 to 24ft adapter cable for PendoTECH Pressure Sensors.

Some Models in Stock
Starting at $53.20
PendoTECH PDKT-650-298-BIND Cable Adapter
PendoTECH PDKT-650-298-BIND Cable Adapter

3ft cable for connection from traditional white pressure sensor connector to binder (-W) receptacle.

$127.30
PendoTECH Buccaneer 400 Series Connector Cable Adapter
PendoTECH Buccaneer 400 Series Connector Cable Adapter

12ft cable adapter for PendoTECH Pressure Sensors.

$121.60
PendoTECH RJ50 Connector to Fast Pressure Cable Adapter
PendoTECH RJ50 Connector to Fast Pressure Cable Adapter

6ft adapter with RJ50 connector to Fast Pressure connection for single use pressure sensors.

$145.09
PendoTECH 4 Pin BIND Connector to Pall Minim Cable Adapter
PendoTECH 4 Pin BIND Connector to Pall Minim Cable Adapter

6ft adapter with 4 pin BIND connector to Pall Minim connection for single use pressure sensors.

$120.75
PendoTECH Sensor Cable Adapter with RJ12 Phone Connector
PendoTECH Sensor Cable Adapter with RJ12 Phone Connector

6ft adapters with RJ12 phone connectors for single use pressure sensors.

Starting at $117.80
PendoTECH Sensor Cable Adapter with Connexal
PendoTECH Sensor Cable Adapter with Connexal

6ft adapter with Connexal for use in PendoTECH control systems.

$117.80
PendoTECH Pressure Sensor to -W Pressure Sensor Adapter Cable
PendoTECH Pressure Sensor to -W Pressure Sensor Adapter Cable

Adapter cable from -W pressure sensors to standard pressure sensor connector.

$126.35
PendoTECH 3-way Luer Stopcock
PendoTECH 3-way Luer Stopcock

Polycarbonate or polysulfone stopcock with M/F luer inlet/outlet F branch.

Starting at $5.70
PendoTECH Single Use Pressure Sensor to PressureMAT Cable Adapter
PendoTECH Single Use Pressure Sensor to PressureMAT Cable Adapter

Cable Adapter with D15, D9, or, IP67 connection for Single Use Pressure Sensor to PressureMAT.

Starting at $90.25
PendoTECH Pressure Sensor Extension Cable
PendoTECH Pressure Sensor Extension Cable

12ft extension cable for PressureMAT pressure sensors.

$121.60
PendoTECH Pressure Test Fixture and Assembly
PendoTECH Pressure Test Fixture and Assembly

Test fixture with precision regulator and optional pressure gauge.

Starting at $3,541.60
Part Number Price Available
PRESS-S-000-30
Show Configuration
$89.30 41 in stock
PRESS-S-000
Show Configuration
$51.30 40 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 16 weeks". Click here to select options
