Kest Technology KM Mixer

Magnetic coupled mixer with speed sensor and up to 22,000 liter mixing volume, for use in CIP/SIP applications.

Starting at $9,280.00
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • 32 to 302F design temperature
  • 32 to 275F operating temperature
  • -14.5 to 145psi design pressure
  • 1-14 pH range
  • Ra≤[0.5 μm] [20 µin] polished surface finish
  • Heat Certificate 3.1 acc. to EN 10 204

What's in the Box

  • Mixer head
  • Male bearing
  • Tank plate
  • Welding tool
  • Selected drive unit

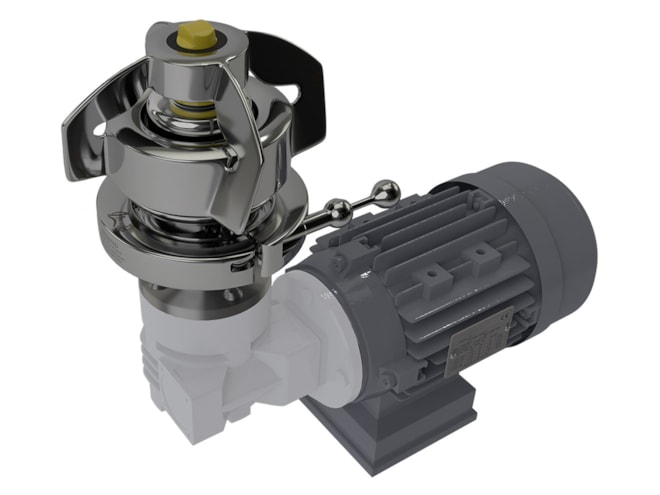

Kest Technology KM Mixer is a magnetic coupled mixer. With its aseptic design and excellent mixing performance it has become a popular choice for critical applications in pharma and biotech environments. The Kest Mixer KM range covers mixing volumes up to 22,000 liters and is designed for CIP/SIP applications.

The Kest KM mixer is designed to deliver a perfect mixing result over and over again. The wings fixed position close to the tank bottom and the possibility to run the mixer during emptying of the tank and ensures full product recovery. Due to the low building height of the mixer head along with a lot of wing area close to the bottom it can handle continuous mixing of low volume levels. The magnetic coupling between the mixing head and drive unit ensures total integrity of the tank. All tank plates are FEM analyzed according to PED & ASME. The robust bearing combination of Zirconium and Sic and the fine-tuned geometry, ensures no particle generation.

To create reliable process control, Kest KM mixer can be equipped with an integrated speed sensor which measures the speed of the mixing head, that the mixing head is in place, and that it rotates in the right direction.

The low weight of the drive unit and Kest Technology’s patented Kest-Lock connection ensures easy operator handling and quick disconnection from the tank plate during maintenance.
