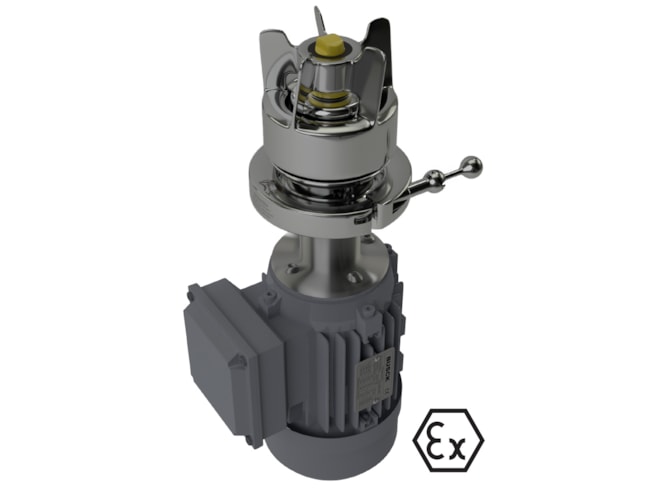

Kest Technology RM ATEX Mixer

Magnetic coupled mixer with up to 8,000 liter mixing volume for use in Zone 1 and 21 applications.

Starting at $13,314.00
Manufactured
Includes
Availability
  • Usually ships in 16-20 weeks
Product Specs

Features

  • 32 to 275F operating temperature
  • 32 to 302F design temperature
  • -14.5 to 101.5psi design pressure
  • Ra≤0.5 μm contact surface finish
  • Heat Certificate 3.1 acc. to EN 10 204

What's in the Box

  • Mixier head
  • Male bearing
  • Tank plate
  • Welding tool
  • Selected drive unit

Kest Technology RM ATEX Mixer, is a magnetic coupled mixer designed for CIP/SIP applications. With its aseptic design and excellent mixing performance it has become a popular choice for critical pharma and biotech applications. The Kest RM mixer range is designed to incorporate more energy into the tank (eg. for dispersions) and covers mixing volumes up to 8,000 liters. The Kest Mixer RM ATEX is classified for Zone 1 and 21, to coop with most situations.

Kest RM ATEX mixer is designed to deliver a perfect mixing result over and over again. This mixer is equipped with a revolution counter which measures the speed of the mixer in order for you to control your process. Robust bearing combination of Zirconium and Sic and the fine-tuned geometry, ensures no particle generation. Magnetic coupling between the mixing head and drive unit ensures total integrity of the tank. All tank plates are FEM analyzed according to PED & ASME.

The low weight of the drive unit and Kest Technology’s patented Kest-Lock connection ensures easy operator handling and quick disconnection from the tank plate during maintenance
