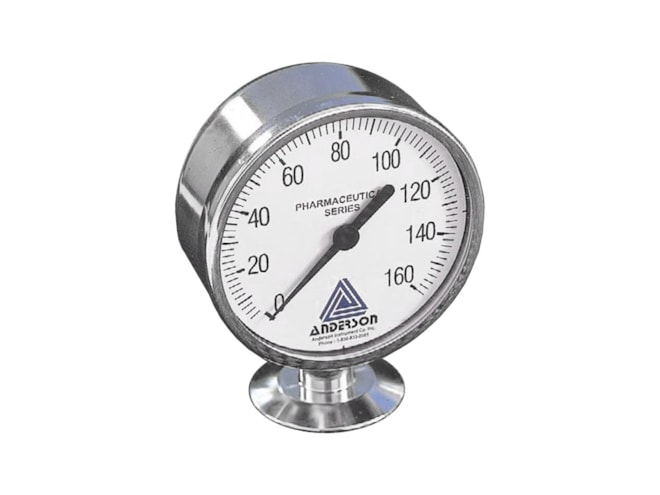

Anderson-Negele EM Sanitary Pressure Gauge

90mm stainless steel gauge with up to 300pisg range for use in life science applications.

Starting at $580.42
Manufactured
Includes
Availability
  • Usually ships in 4 weeks
Product Specs

Features

  • ± .25% of full scale accuracy
  • 25% over range over range capability
  • -20 to 300F process temperature range
    • High temperature option up to 330F
  • 40 to 120F ambient temperature range

Anderson-Negele EM Sanitary Pressure Gauge is Anderson’s re-designed 90mm sanitary pressure gauge that has raised the bar relative to performance, reliability, and ease of use. Customers in the Life Sciences market will recognize at a glance that Anderson has maintained their unique features such as the all-welded construction, electro-polished wetted parts, and standard calibration certifications.

New to the 90mm EM series is its compact profile that fits virtually anywhere while still maximizing readability. But what really sets this gauge apart is the new offset adjustment that comes as a standard feature on every Life Science series gauge. EM sanitary pressure gauge is available rear-mounted and unobtrusive with a special tool provided for the optional span adjustment so that it’s tamper-proof.

Applications

  • Filtration
  • Fermentation
  • SIP and autoclave applications
  • All sanitary pressure dependent processes
