Overview

Features

  • 50 to 2,500lph flow range
  • Maximum temperature:
    • Fluid: 140°F (60°C)
    • Autoclave: 266°F (130°C)
  • 58psi (4 bar) max fluid pressure
  • 14.7ft max suction lift dry at 1,750rpm
  • 400V, 230/400V, 3x200-240V, or 3x380-500V
  • Integrated flow and pressure measurement options
  • High flow stability even at low flow rates
  • Solid polypropylene pump chambers
  • Self-draining design

Description

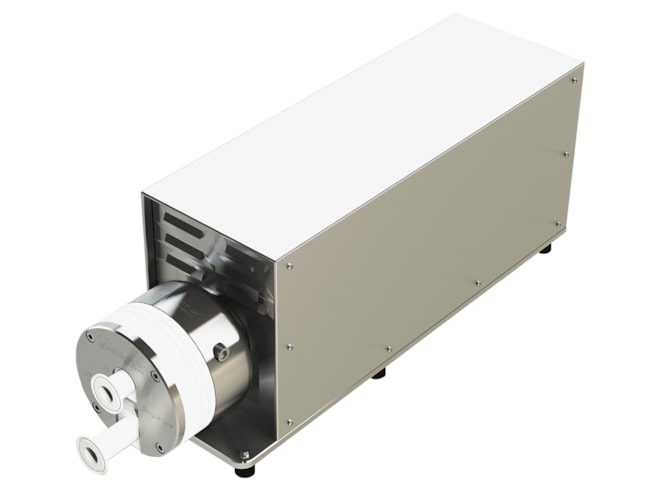

The Quattroflow QF2500 Series 4-Piston Diaphragm Pump with Single-Use Chamber is designed to provide linear flow performance in flow rates ranging between 50 and 2,500lph. Quattroflow single-use pump solutions provide quicker cleaning and sterilization methods with their disposable, wetted pump chambers. These pump chambers are composed of sturdy polypropylene material and feature virus filtration capabilities just like the multiple-use counterpart.

The QF2500 Series accomplishes virus filtration by combining a high turndown ratio with minimal pulsation in the pumped fluid. This reduces the chance of clogged filter pores which slow down flow rates when using traditional methods.

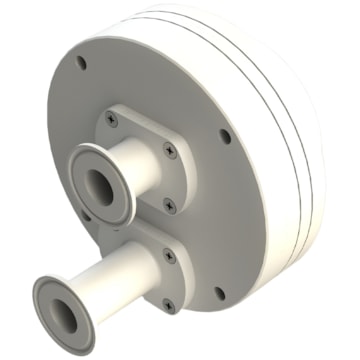

The QF2500SU Series is available with or without a polypropylene single-use pump chamber included. With the addition of the disposable wetted pump chamber, which can be replaced as a complete unit, the single-use version of the QF2500 Series pump provides flexibility in Bioprocess applications. Additional single-use chambers are available separately.

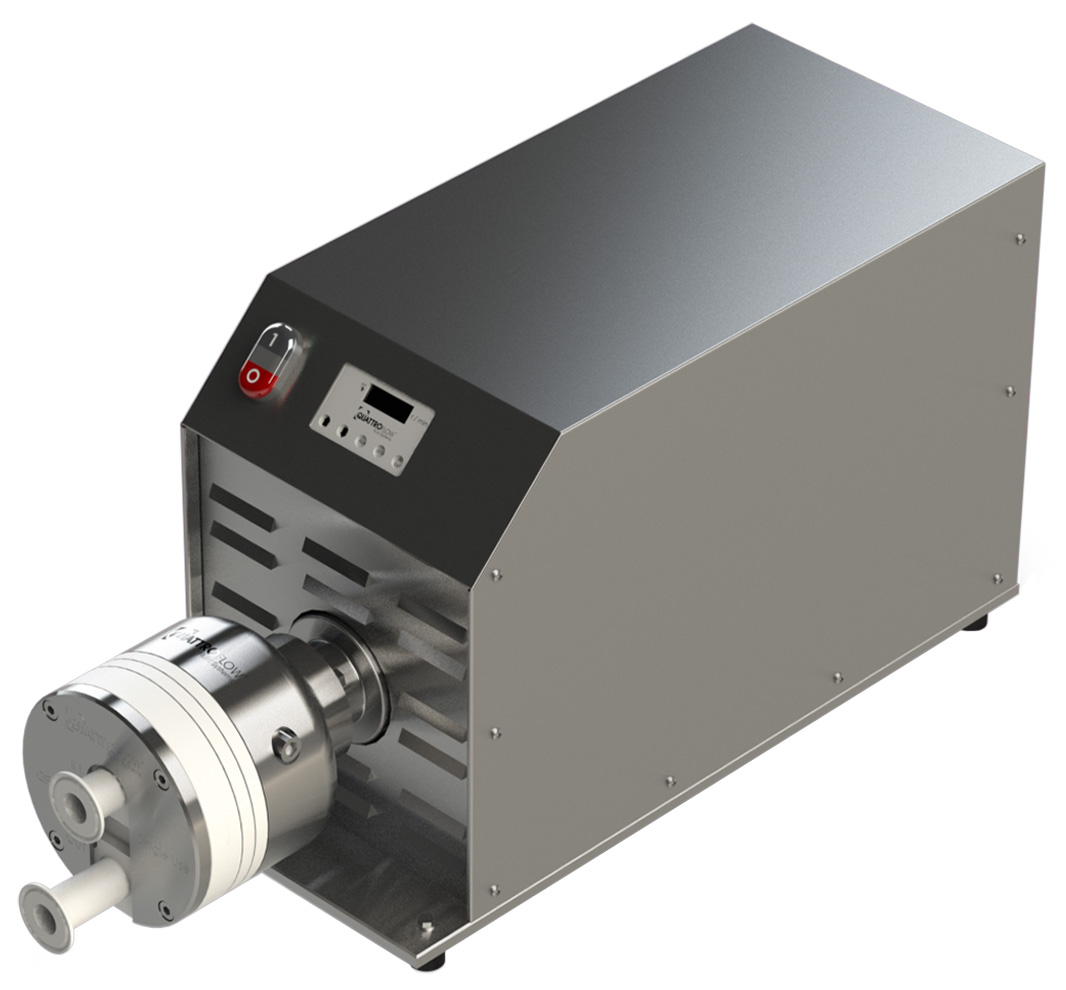

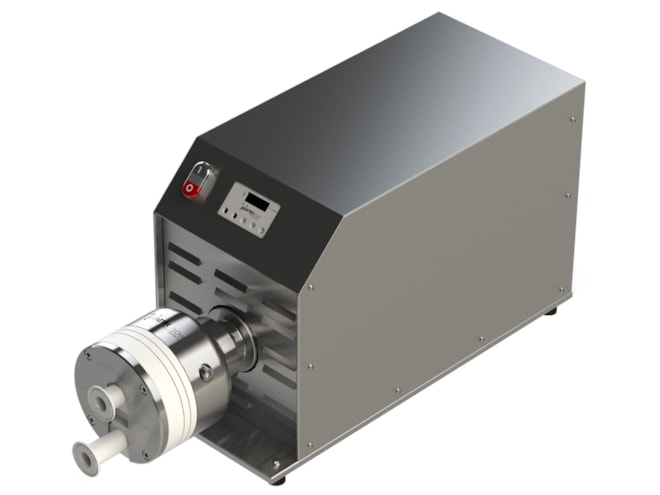

Quattroflow QF2500 series is available with Q-Control and HT control box options. Q-Control is an integrated pump controller that interfaces with a variety of flow and pressure sensors to provide automated control over pump operations. The HT version offers all-in-one technology to integrate the pump chamber, pump drive, motor, controller and pump housing into a single unit. This model also features a three-phase power supply, a compact design, high flow accuracy, and an extended turndown ratio.

Quattroflow pumps operate in a gentle, safe, and secure manner and securely convey aqueous solutions and biological products sensitive to shear force. The design does not feature a mechanical shaft seal or wetted rotating parts, to ensure total product containment without abrasion. Furthermore, the pumping mechanism enables risk-free dry-running, low pulsation, self-priming, and minimal particle generation.

Applications

  • TFF
  • virus filtration
  • sterile filtration
  • depth filtration
  • Chromatography
