Quattroflow QF5k Series 4-Piston Diaphragm Pump with Single-Use Chamber

The Quattroflow QF5k Series 4-Piston Diaphragm Pump with Single-Use Chamber is designed for biopharmaceutical applications requiring a max flow rates of 5,000 to 6,000lph. The QF5k minimizes non-recoverable product with a patented valve plate design that promotes self-draining and venting. The enhanced venting of the QF5k series reduces the minimum flow rate required to remove entrapped air during priming.

Quattroflow pumps with single-use chambers are designed to save time, lower cleaning and sterilization costs, and eliminate the risk of cross-batch contamination. They feature disposable, solid polypropylene pump chambers. Pump chambers are gamma-irradiated and single-use pumps are then assembled in a ISO Class 7 cleanroom.

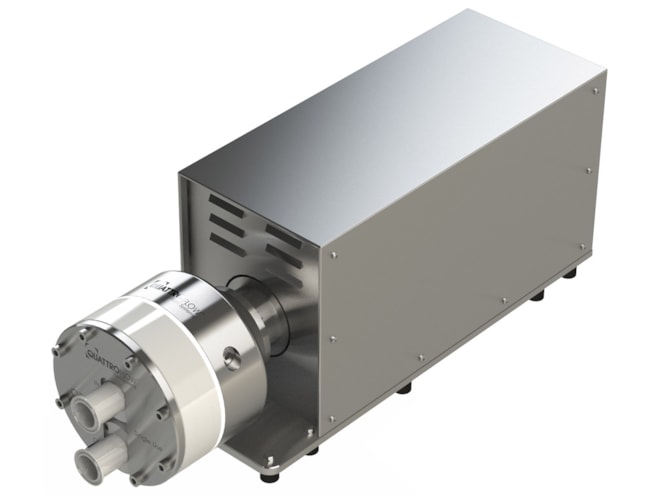

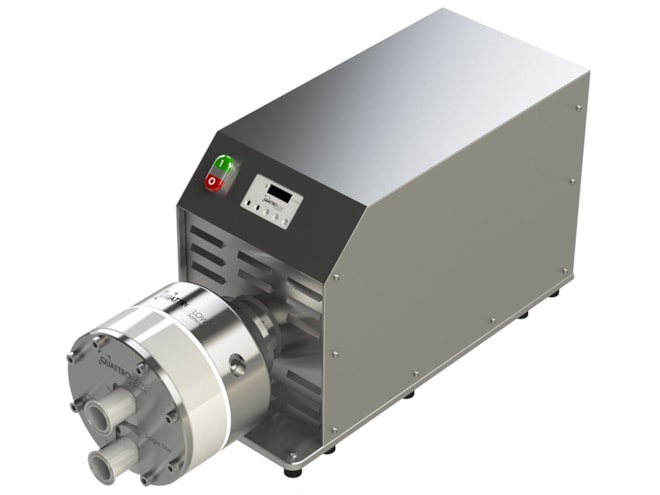

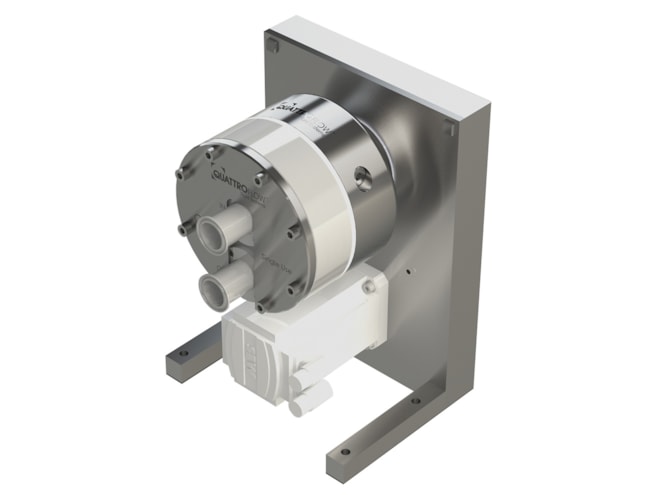

Quattroflow QF5k Series is available with a standard AC, compact, or HT drive. The AC drive version comes with a 3-phase asynchronous motor. The compact drive version reduces the pump's spacial footprint by incorporating a “pump next to motor” design. Then finally, the HT drive version features a plug-and-play design with an integrated motor, controller, and keypad.

Quattroflow pumps operate in a gentle, safe, and secure manner and securely convey aqueous solutions and biological products sensitive to shear force. The design does not feature a mechanical shaft seal or wetted rotating parts, to ensure total product containment without abrasion. Furthermore, the pumping mechanism enables risk-free dry-running, low pulsation, self-priming, and minimal particle generation.

Applications

• TFF
• virus filtration
• sterile filtration
• depth filtration
• Chromatography
