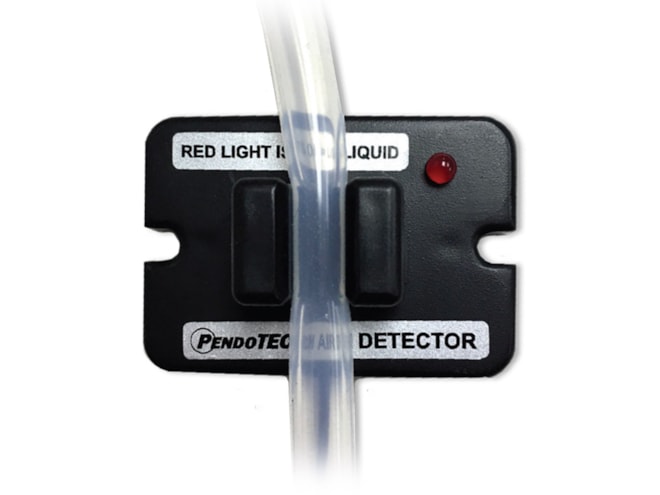

PendoTECH Air in Tube Detector
Ultrasonic air and liquid detector for 1/4 to 3/4 inch tubing.
Overview
Features
- 41° to 140°F operating temperature
- 200μS max wet-to-dry response time
- 11ms min dry-to-wet response time
- 24VDC power supply
- 5V digital output signal (air)
- Uses the same technology that's used in critical medical applications
- Tube slides into device in seconds for easy integration into the system
- IP55 rating and CE, REACH, RoHS3 certified
Description
PendoTECH Air in Tube Detector is a non-invasive device that operates with sound waves to detect the presence of air or liquid within a tube. The detector has a panel-mounted design that is available for tubing with a 1/4 to 3/4in OD. This ultrasonic detector can be used with all tubing types, even if they're not transparent, and can be integrated into the control systems to measure the output and trigger response in biopharmaceutical applications.
The output of the PendoTECH Air in Tube Detector is designed to continue indicating the presence of air for a minimum of 11 milliseconds after the bubble has passed through the sensor to allow fast-moving bubbles to be detected. Bubbles are detected when the size is greater than 50% of the tubing's inner diameter in most liquids, however, groups of micro-bubbles or foam will also be detected as bubbles.
Applications Include:
- Depth Filtration - to detect end of batch or flush
- Chromatography - to prevent air from being pumped into the column
- Bioreactors - monitor bioreactor feed lines to notify if additional sources are empty
- Tangential Flow Filtration - to determine the end-point of fed-batch or buffer additions
