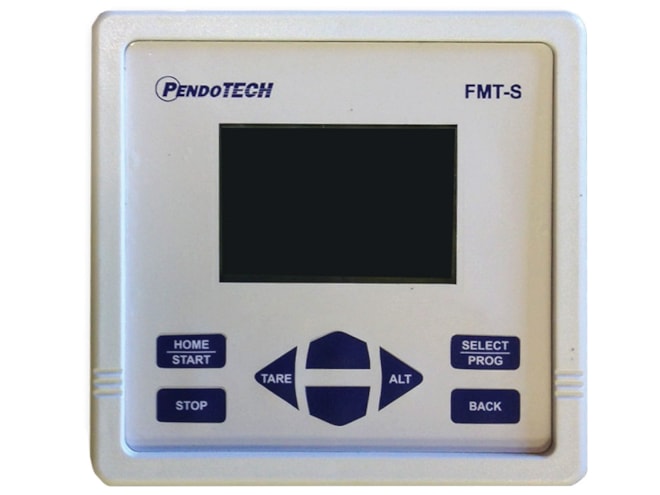

PendoTECH Premium Flow Meter Monitor
With LCD and white backlit display.
Overview
Features
- 12-24 VDC power inlet
- 4-20 mA output with +/- 0.016 mA accuracy
- RS232 serial output with 2 second frequency
- Includes 6ft extension cable with earphone receptacle
- Flow meter input to measure 5V square wave via M8 connector
- ABS Enclosure with NEMA 4X front panel/surface mount
- RoHS and REACH compliant
Description
The PendoTECH Premium Flow Meter Monitor is a high-quality, reliable microcomputer-based process monitoring instrument. It has been designed to provide precision fluid measurement, value monitoring, and data communication for a variety of applications. It also has the ability to measure totalized volume in addition to the present flow rate. This can be useful in applications such as filtration and chromatography and can be used as an alternative to a scale to measure total flow.
The pulse constant is permanently saved in non-volatile memory within the flow meter monitor. Data from the device can be collected to a PC via the RS-232 serial port and the 4-20mA output can be used to integrate the unit into a process control system such as a PLC or DeltaV. Users can access all the functions of the unit through the menu-driven integrated keypad and LCD.
