PendoTECH Temperature Sensor Benchtop Transmitter

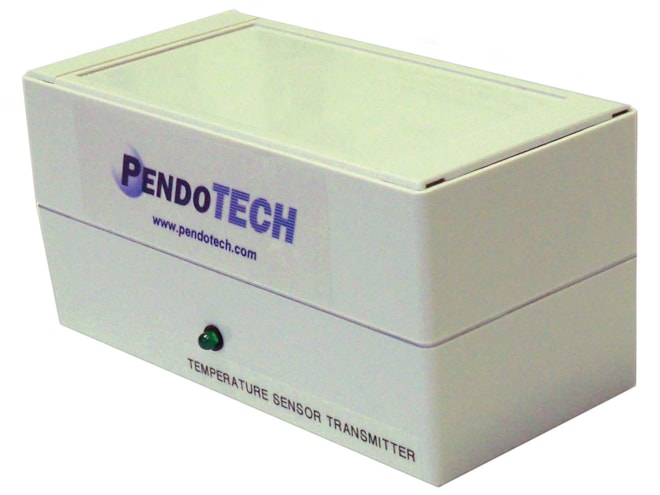

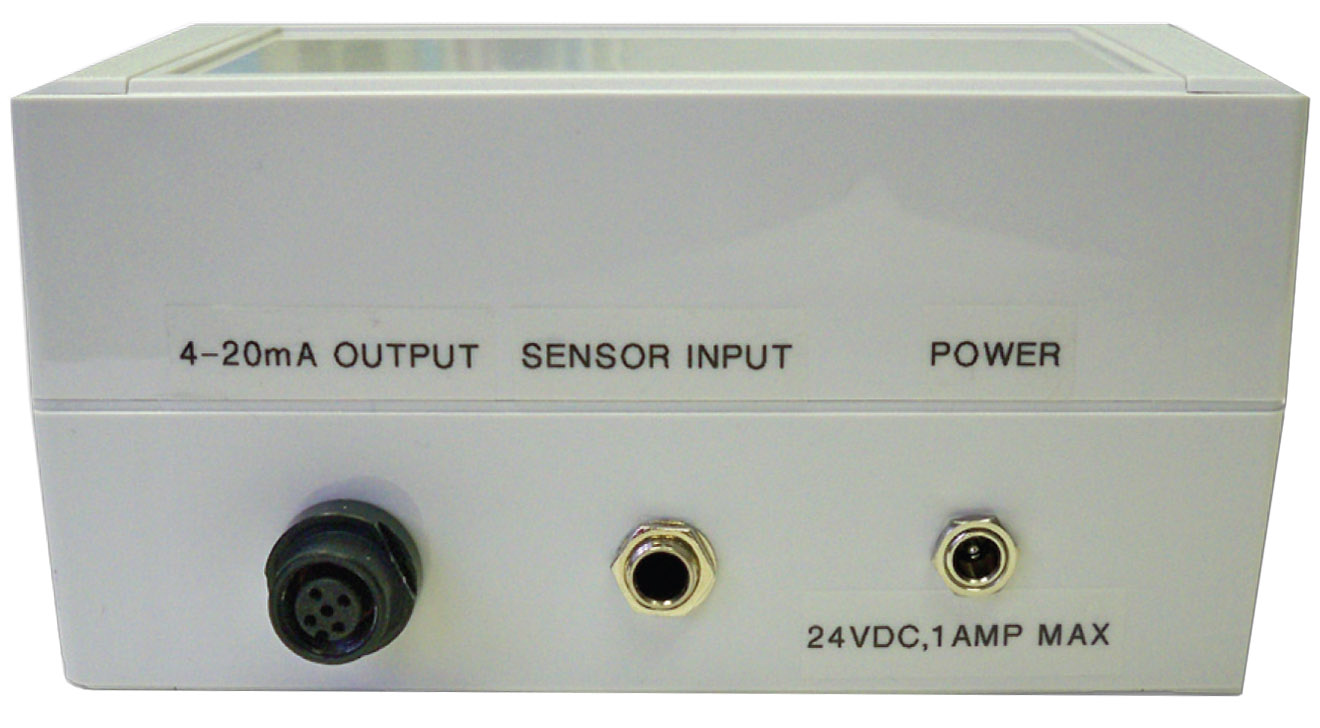

The PendoTECH Temperature Sensor Benchtop Transmitter is a 1 to 4-channel device that is designed to connect to the PendoTECH Temperature sensor and produces a 4-20 milliamp signal that is linear with temperature. The transmitter has a rugged ABS plastic enclosure and an LED front panel power indicator. Electrical connections are located on the back panel. Digital technology and the narrow 4-20mA output range from 0 to 70ºC ensure accurate and drift-free linearization of the sensor output.

The temperature sensor benchtop transmitter is powered by a 24VDC wall supply that has a universal voltage input (100-250VAC). To interface with other PendoTECH products, the unit comes with an interface cable that can be plugged into the 4-20mA output on the back of the device. To maintain CE compliance, input wires must be less than 10ft in length which is the maximum length of the PendoTECH reusable monitor cables.
