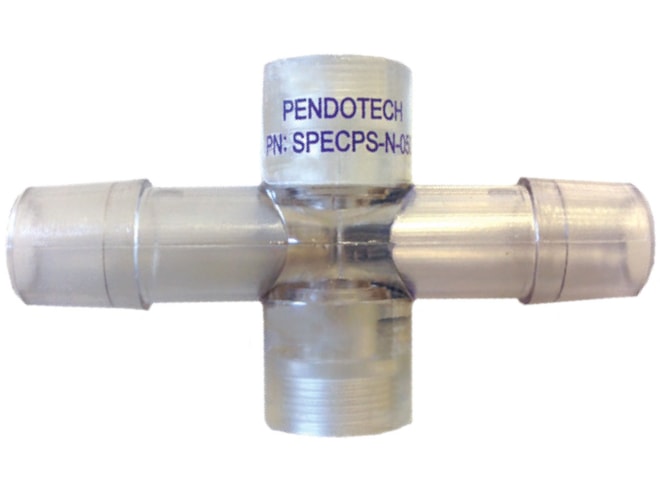

PendoTECH Single Use UV Flow Cell

Non-sterile, polysulphone with 0.2 to 1cm path length and hose barb connections.

Starting at $215.65
Manufactured
Includes
Availability
Product Specs (2 Files)

Features

  • Non-sterile polysulphone material
  • 0.2cm path length has 1/8 inch hose barb fittings
  • 0.5cm path length has 1/4 inch hose barb fittings
  • 1cm path length has 1/2 inch hose barb fittings
  • Sterilization methods:
    • Autoclavableup to 121°C
    • Gamma and x-ray irradiation up to 50KGy

PendoTECH single use UV flow cells are designed to work with the UV-VIS-NIR Photometer to provide non-invasive measurements that identify the absence or presence of a molecule within fluid processes. They are available with path lengths between 0.2 and 1cm path lengths and feature 1/8, 1/4, or 1/2in connections. All polymeric materials in fluid path meet USP Class VI standards and it is assembled in an ISO 13485 facility.

The single use UV flow cells have compartments for inserting optical couplers to which the photometer’s fiber optic cables are attached. They also contain special silica glass lenses to pass the photometer’s light source through the sample and to the detector. The stream to be measured flows between the lenses by way of tubing attached to the hose-barb ends of the flow cell.

Part Number Price Available
SPECPS-N-025
Show Configuration
$226.10 24 in stock
SPECPS-N-050
Show Configuration
$238.45 24 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
