Starting at $17,900.00
  • Call for availability

Overview

Features

  • For 0.375 OD to 0.750in OD tube sizes
  • 72°F ±10 operating temperature
  • Power input:
    • 100-120 VAC, 50/60 Hz, 1.2 amps
    • 230 VAC, 50/60 Hz, 0.4 amps
  • Thick wall sealing head for use with 0.125in wall tubing
  • Sealer controller has a password-protected setting
  • Adjustable sealing temperature and dwell time
  • Remote sealing head with built-in safety lock
  • WEEE, CE, and cTUVus certified

Description

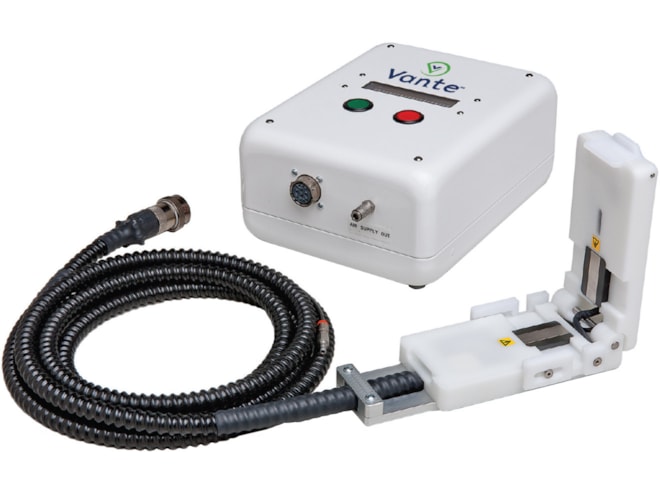

Vante 3160 series TPE sealer produces consistent, quality seals on most TPE tubing used in biopharmaceutical manufacturing. This sealer is easy to clean, portable, and compact with a single-button operation that makes it easy to use and validate. The 3160 sealer is designed to work with two available sealing heads to create seals in tubes up to 0.750in outer diameter. The unique remote thin wall sealing head clamps and hangs from tubing for convenient use with manifold systems. The thick wall sealing head is designed for .0125in thick wall tubing. The device operates with a 100-240V, 50/60 Hz, CE-marked outlet (Compressed air required).
