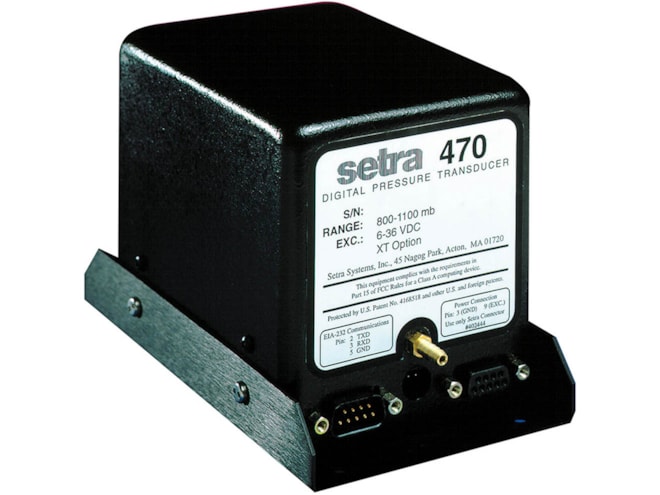

Setra 470 Digital Barometric / Medium Pressure Transducer

High performance unit featuring min/max tracking, hi/lo alarms, non-linear functions, calibration.

Starting at $3,300.66
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • ±0.02% full scale accuracy
  • Bidirectional RS-232 digital communications I/O port
  • Engineering unit conversions for pressure and altitude
  • 32 to 110°F (0 to 45°C) temperature range
  • Digital altimeter setting indicator (DASI)
  • Corrected altimeter mode
  • Programmable non-linear functions
  • Meets CE conformance standards

The Setra 470 Digital Barometric / Medium Pressure Transducer provides extremely high accuracy and unmatched stability in a digital output configuration. Environmental monitoring and test & measurement systems worldwide rely on Setra's expertise in barometric pressure measurement instrumentation, as well as high-accuracy measurements of higher pressures. Both models utilize Setra's unique SETRACERAM sensor, which is combined with advanced microprocessor based circuitry and sophisticated firmware to provide ± 0.02% full-scale system accuracy.

The 470 is intended for applications that do not require local display of pressure or keypad access to commands. This unit has solid stability, reliability, and versatility making it the first choice for weather observation systems around the world. Both units are programmable for continuous, interval, or on-demand printing at an adjustable (300-9600) baud rate.

Applications include:

  • Automatic weather reporting systems
  • Pressure transfer standard
  • Altimeter calibration recertification
  • Lab or production process monitoring
  • Altitude chambers
