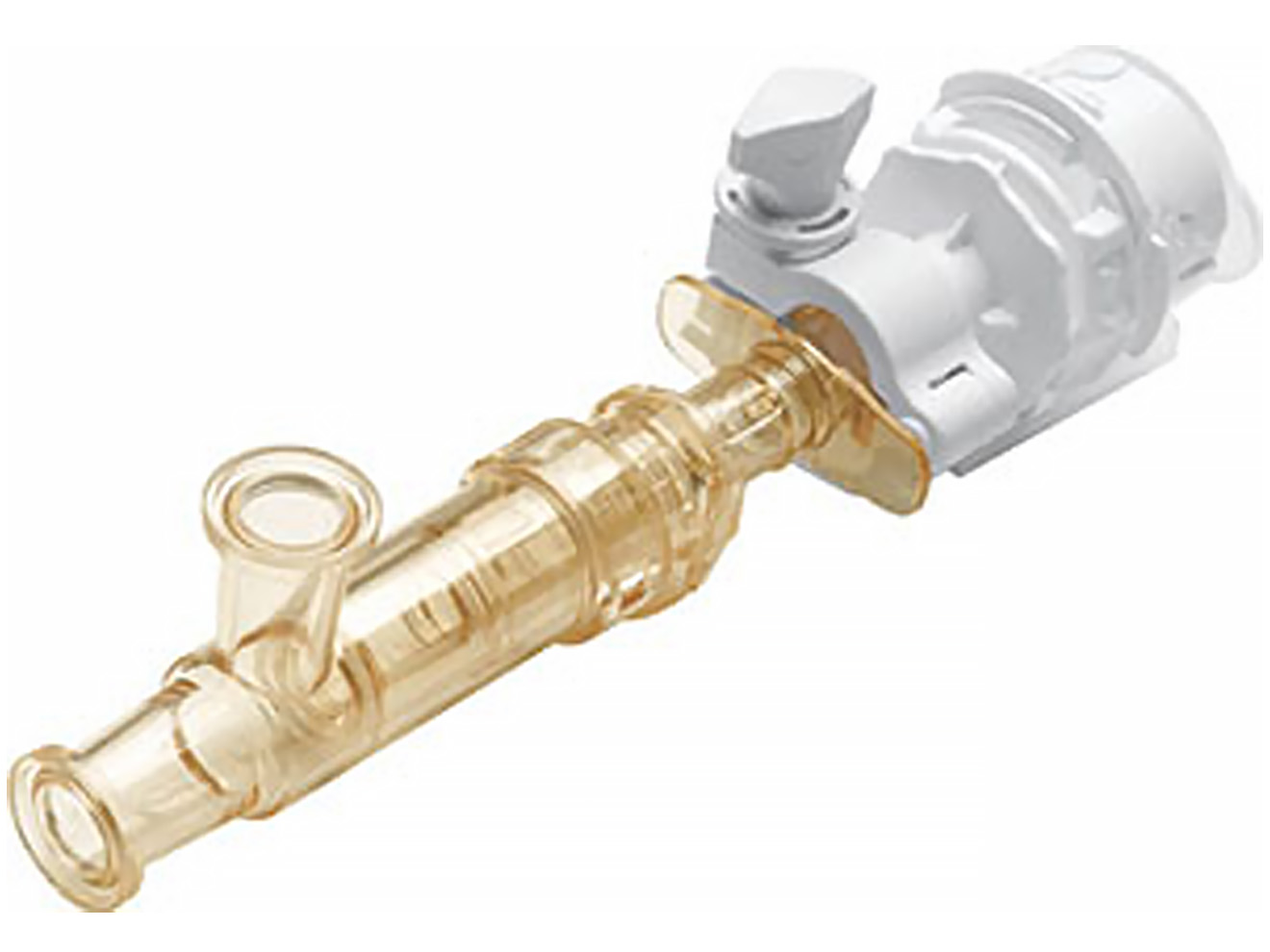

CPC AseptiQuik STC Series Connectors

Bag of 5 fittings for mounting directly to a stainless steel vessel via a sanitary termination.

Starting at $1,425.80
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks

Features

  • 3/4 or 1 1/2in sanitary termination
  • Polycarbonate with platinum-cured silicone seal
  • Temperature ranges:
    • 39 to 104°F in the flow position
    • Up to 275°F for 60 minutes in the steam position
  • Pressure ranges:
    • Up to 20psi, 1.4bar in the flow position
    • Up to 35psi, 2.4bar in the steam position
  • Innovative three-port steam design with patented steam valve
  • Sanitary interface between the two connectors
  • Sterilization methods:
    • Gamma up to 50kGy irradiation
    • High temp version is autoclavable up to 266°F for 30 minutes
  • Classified USP Class VI, ADCF

The CPC AseptiQuik STC Series Connector integrates the AseptiQuik sterile connector and the Steam-Thru II SIP connector, giving manufacturers even greater flexibility for hybrid stainless steel and single-use processing. In the flow position, the AseptiQuik STC series can withstand temperatures between 39° to 104°F and pressures up to 20psi (1.4 bar). In the steam position, the connector can withstand temperatures up to 275°F for 60 minutes and pressures up to 35psi (2.4 bar). The standard AseptiQuik STC series may be sterilized with gamma irradiation up to 50kGy and the high-temperature version is autoclavable up to 266°F.

The union of the AseptiQuik and Steam-Thru II SIP in a single unit through a sanitary clamp allows an AseptiQuik sterile connection to be steamed onto stainless equipment via SIP. After the SIP cycle, a wide range of single-use systems can be connected. The SIP process can be done in advance allowing a quick and easy sterile connection to the AseptiQuik half without waiting 30-60 minutes for SIP before harvest.
