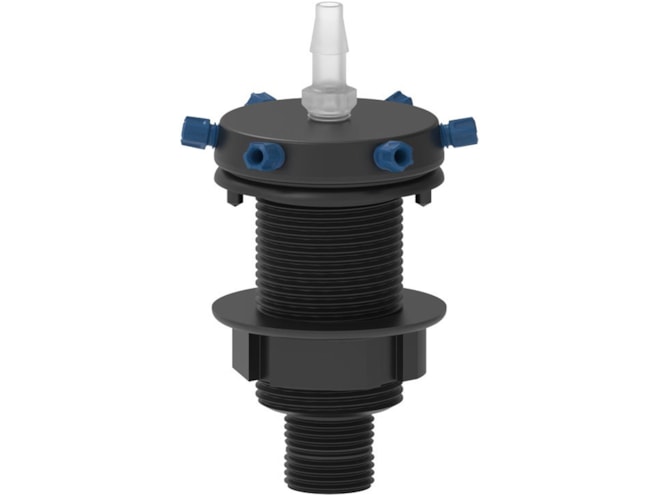

SCAT Lab Safety 106546 HPLC Desktop Mount

PE-HD-EL table feedthrough for integrating HPLC connections into a work surface while taking up minimal surface space.

$287.50
Part Number
  • 106546
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • PE-HD electrostatic conductive material
  • (6) 3.2mm OD capillary ports on the sides
  • (1) 5.0 - 11.5mm ID upper tubing port
  • Pad diameter 53mm
  • Lance diameter 32mm
  • Lower thread G1/2in (m)

SCAT Lab Safety 106546 HPLC Desktop Mount is a bench feed-through designed to integrate into the laboratory bench and connect the HPLC system with the SymLine pipe/tube system.
