White Mountain Process Mixing Tank
Custom mixing and blending system for pH adjustment, salt dissolving, and beverage blending.

Overview
Features
- Plastic or stainless steel tank materials
- Plastic or stainless steel mixer materials
- 25 to 1000gal standard capacities
- Direct drive or gear drive mixer
- 0.5 to 3HP models available
- Air, electric, or XP electric motor
- Other options include:
- Instrumentation
- PLC controls and automation
- A choice of outlet pump
- Pre-wired VFD for electric mixers
- Low and high shear mixer designs
- Choice of top and side fittings, bottom valve
- Spray ball or cleaning nozzle (sealed design required)
Description

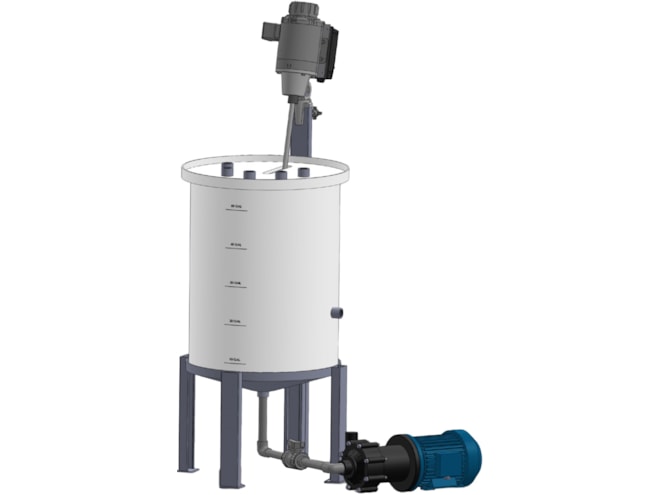

The White Mountain Process Mixing Tank is a customizable system comprised of a plastic or stainless steel tank, a mixer, outlet valve, and pump. These process tanks are made with plastic or stainless steel materials with standard volume capacities ranging from 25 to 1000 gallons. Additional tank sizes are available upon request. This versatile system can adapt to individual application needs and offers options ranging from simple economical mixing tanks to fully automated blending systems.
Mixers for this system have a direct drive or gear drive function and come in high or low shear designs. They are available with air, electric, or XP electric motors. Electric mixers have pre-wired VFD, which allows for simplified installation. Mixer material options include 316 stainless steel, Hastelloy C, rubber or PTFE coated assembly, sanitary duty polish, or exotic alloys to meet specific application requirements.
Accessory and automation options include instrumentation, vent filters, valves for top head, sample valves, automated valves, and PLC controls. Some instrumentation options include pH, temperature, conductivity instruments, load cells, numerous impeller options, and pre-wired speed controllers. Fittings such as NPT or ANSI flanges, tri-clamp fittings, and manual or automated valves can be welded to the tank upon request.
Applications
- pH adjustment
- Buffer prep
- Salt dissolving
- Liquid-liquid mixing
- Mixing powder into liquid
